Omega Pro 2 / OP2 4400-830 HX HF Q600

92916800 / E7018074

Data Sheet

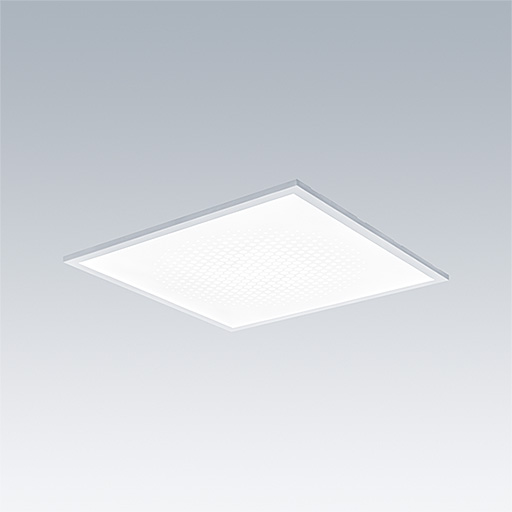

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Fixed output. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic. Electrical connection via piano key terminals, loop-in/loop-out possible. Complete with 3000K LED, Colour Rendering Index min.: 80



Dimensions: 597 x 597 x 55 mm
Luminaire input power: 33.9 W
Luminaire luminous flux: 4150 lm
Luminaire efficacy: 122 lm/W
Weight: 5.05 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4150 lm
  • Luminaire efficacy*:122 lm/W
  • Lamp efficacy:122 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000701 DRV TR LC 45W 1.4A 54V F #flexC SR EXC
  • Correlated colour temperature:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000h at 25°C
  • Luminaire input power*:33.9 W Power factor = 0.95
  • Dimming:FIX
  • LED
  • CE
  • Einb_NDaeMat
  • 650°
  • IK03
  • IP40_IP20
  • SC2 - Protection Class 2
