Omega Pro 2 / OP2 3800-840 CKIT+ HX Q600

92913222

Data Sheet

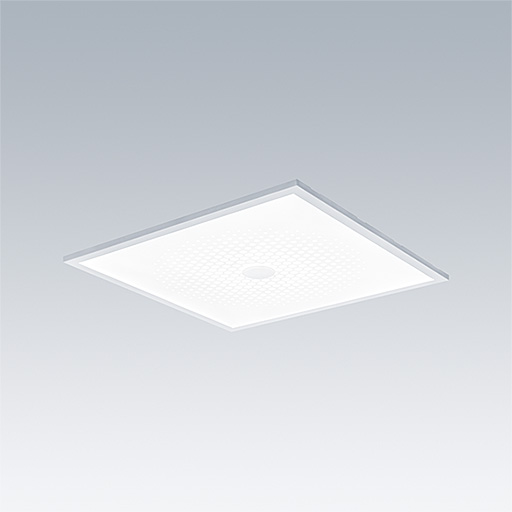

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, DALI-2 dimmable. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED, Colour Rendering Index min.: 80



Dimensions: 597 x 597 x 57 mm
Luminaire input power: 27.4 W
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 139 lm/W
Weight: 5.35 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3800 lm
  • Luminaire efficacy*:139 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000654 LCA 35W 150-700mA one4all lp PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:27.4 W Power factor = 0.97
  • Standby Power*:0.2 W
  • Dimming:Dali2Dim dimmable to 10%
  • LED
  • CE
  • Einb_NDaeMat
  • ENEC11
  • GLedReP
  • 650°
  • IK03
  • IP40_IP20
  • LLedNr
  • RG0
  • SC2 - Protection Class 2
  • Ta=0°C_to_+35°C
