Axyl Opera

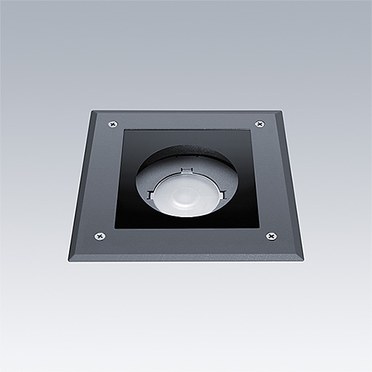

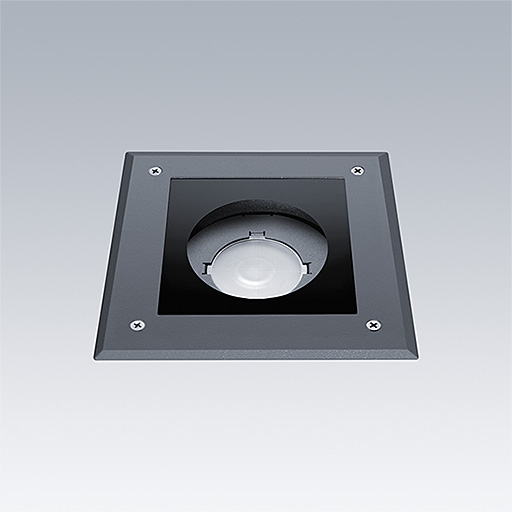

Axyl Opera Walk Over is a walk over in-ground luminaire perfect for urban areas, residential projects and public parks

In-ground square luminaire available in five standard colours (stainless steel, grey, anthracite, black, white). And four sizes (small to extra large).
Multiple light distributions: wide diffused effect, narrow, medium, assymetric beam. 5D beam (10-49°) DALI Compliant allowing adjustment of beam. Tilt +/- 15° for Narrow - Medium Beam. Tilt +/- 5° for Assymetric Beam.
Available in 2700K, 3000K, 4000K and CRI90. RGBW is available on Large and Extra Large size.
Axyl Opera is available Non-Dim or with DALI2 connectivity (remote driver option for Small and Medium Size). RGBW only available via Remote DMX Driver. Remote 48Vdc Power Supply for 5D Beam.
IK09 & IP65/IP67 Load = 1050kg for L and XL - 510kg for S and M

Materials and Finish

Die-cast aluminium housing EN-AC 44300.
Front bezel in stainless steel A4 or aluminium.
Screws treated with Geomet anti-galvanic coating.
Toughened glass.
Silicone gaskets.
Double Powder paint process.

Polypropylene recess box.

Suitable for C3 (standard corrosion class according to ISO 9223 : 2012

Installation and Mounting

Suitable for in-ground mounting with recessed box included.

Maximum cable size :
Axyl Opera S/M HF : 3 x 1mm² - 3 x 2,5mm². Pre-wired 0.5m.
Axyl Opera S/M RD : 2 x 1mm² - 2 x 2,5mm². Pre-wired 0.5m.
Axyl Opera L/XL HFX : 5 x 1mm² - 5 x 2,5mm². Pre-wired 0.2m.
Axyl Opera L 5D : 4 x 1mm² - 4 x 2,5mm². Pre-wired 0.2m.

Remote DALI-2 driver to be ordered separately for Small & Medium.
Remote DMX driver to be ordered separately for RGBW.
Remote 48Vdc Power Supply to be ordered separately for 5D Beam.
