Thor

  • Thor
  • Thor
  • Thor
  • Thor

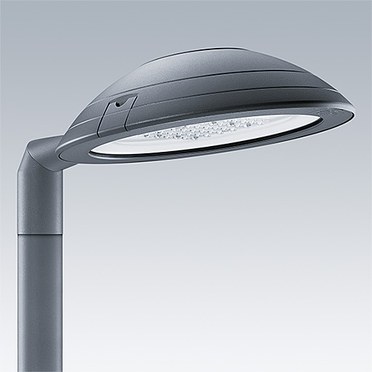

An LED smart urban lantern providing high user comfort and easy integration of connectivity and sensors into city environments

  • High lighting quality creates a comfortable ambience
  • Designed around the high performance R-PEC light engine, ensuring an excellent balance between performance and comfort
  • Wide choice of control options with a discreet RF variant
  • Flexible mounting options extend the scope of application

Materials and Finish

Dome, 2 options : Thor L, UV stabilized polycarbonate with dark sandy grey finish, close to RAL7043 or with opal finish. Thor S, UV stabilized polycarbonate with opal finish, or die-cast aluminium EN AC-46100 with dark sandy grey finish.
Glass: toughened flat glass
Bracket: die cast aluminium EN AC-47100 (AS12U) treated against corrosion and powder coated dark sandy grey finish (close to RAL7043).
Body: die cast aluminium (Thor L, EN AC-44300 - Thor S, EN AC-46100) treated against corrosion and powder coated dark sandy grey finish (close to RAL7043).
Reflector: ABS white with UV treatment
Screws and closing set: Stainless steel

Installation and Mounting

Recommended mounting height: up to 8m. All post top and side entry versions are pre-wired. Supplied complete and ready to install, in a single box. Suitable for both post top and side entry mounting Ø60mm as standard. Side mounting: Ø60mm x 100mm long spigot, tilting -15° max, secured by 2 screws, delivered tilted at 0° by default. Top mounting: Ø60mm spigot, tilting +10° max, secured by 2 stainless steel screws, delivered tilted at 0° by default. Optimised with R-PEC optics for good control and performance. Catenary and suspended versions fixed through 27G, and 34G. Ø48 mm lateral and post top versions (external Ø60mm, internal Ø48mm), available on request.

New Product
LumExpress Product
eControl Product

Thor S, Post top mounting, full dome, narrow road optic

Thor S, Post top mounting, full dome, street comfort optic

Thor S, Post top mounting, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 36L50-730 RWT BPS HFX CL2 FD W6 T60E557825LED10.6096665252
TR 36L50-740 RWT BPS HFX CL2 FD W6 T60E558558LED10.6096665253
TR 36L70-730 RWT BPS HFX CL2 FD W6 T60E7710384LED10.6096665267
TR 36L70-740 RWT BPS HFX CL2 FD W6 T60E7711357LED10.6096665268

Thor S, Post top mounting, full dome, wide street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 24L50-740 WSC BPS HFX CL2 FD W6 T60E385562LED10.6096630372
TR 24L70-740 WSC BPS HFX CL2 FD W6 T60E527430LED10.6096630373

Thor S, Post top mounting, full dome, pedestrian crossing optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 36L70-740 IVS BPS HFX CL2 FD W6 T60E7710865LED10.6096628696

Thor S, Post top mounting, opal dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 12L35-740 NR BPS HFX CL2 OP T60E212076LED10.6096630262
TR 12L35-740 NR BPS HFX CL2 OP W6 T60E212076LED10.6096630363
TR 12L50-740 NR BPS HFX CL2 OP T60E272857LED10.6096630263
TR 12L50-740 NR BPS HFX CL2 OP W6 T60E272857LED10.6096630364
TR 12L70-740 NR BPS HFX CL2 OP T60E343832LED10.6096630264
TR 12L70-740 NR BPS HFX CL2 OP W6 T60E343832LED10.6096630365
TR 24L35-740 NR BPS HFX CL2 OP T60E344139LED10.6096630265
TR 24L35-740 NR BPS HFX CL2 OP W6 T60E344139LED10.6096630366
TR 24L50-740 NR BPS HFX CL2 OP T60E445684LED10.6096630266
TR 24L50-740 NR BPS HFX CL2 OP W6 T60E445684LED10.6096630367
TR 24L70-740 NR BPS HFX CL2 OP T60E587592LED10.6096630267
TR 24L70-740 NR BPS HFX CL2 OP W6 T60E587592LED10.6096630368
TR 36L35-740 NR BPS HFX CL2 OP T60E456178LED10.6096630268
TR 36L50-730 NR BPS HFX CL2 OP W6 T60E617729LED10.6096665248
TR 36L50-740 NR BPS HFX CL2 OP T60E618454LED10.6096630269
TR 36L50-740 NR BPS HFX CL2 OP W6 T60E618454LED10.6096665249
TR 36L70-730 NR BPS HFX CL2 OP W6 T60E8310257LED10.6096665262
TR 36L70-740 NR BPS HFX CL2 OP T60E8311218LED10.6096630270
TR 36L70-740 NR BPS HFX CL2 OP W6 T60E8311218LED10.6096665263

Thor S, Post top mounting, opal dome, street comfort optic

Thor S, Post top mounting, opal dome, wet road optic

Thor S, Lateral mounting, full dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 36L50-730 NR BPS HFX CL2 FD W6 L60E557729LED10.0096665286
TR 36L50-740 NR BPS HFX CL2 FD W6 L60E558454LED10.0096665287
TR 36L70-730 NR BPS HFX CL2 FD W6 L60E7710257LED10.0096665299
TR 36L70-740 NR BPS HFX CL2 FD W6 L60E7711218LED10.0096665300

Thor S, Lateral mounting, full dome, street comfort optic

Thor S, Lateral mounting, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 36L50-730 RWT BPS HFX CL2 FD W6 L60E557825LED10.0096665292
TR 36L50-740 RWT BPS HFX CL2 FD W6 L60E558558LED10.0096665293
TR 36L70-730 RWT BPS HFX CL2 FD W6 L60E7710384LED10.0096665307
TR 36L70-740 RWT BPS HFX CL2 FD W6 L60E7711357LED10.0096665308

Thor S, Lateral mounting, opal dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 36L50-730 NR BPS HFX CL2 OP W6 L60E617729LED10.6096665288
TR 36L50-740 NR BPS HFX CL2 OP W6 L60E618454LED10.6096665289
TR 36L70-730 NR BPS HFX CL2 OP W6 L60E8310257LED10.6096665302
TR 36L70-740 NR BPS HFX CL2 OP W6 L60E8311218LED10.6096665303

Thor S, Lateral mounting, opal dome, street comfort optic

Thor S, Lateral mounting, opal dome, wet road optic

Thor S, Suspended, full dome, narrow road optic

Thor S, Suspended, full dome, street comfort optic

Thor S, Suspended, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 36L50-730 RWT BPS HFX CL2 FD MSU27GF557825LED8.2096665357
TR 36L50-740 RWT BPS HFX CL2 FD MSU27GF558558LED8.2096665358
TR 36L70-730 RWT BPS HFX CL2 FD MSU27GF7710384LED8.2096665360
TR 36L70-740 RWT BPS HFX CL2 FD MSU27GF7711357LED8.2096665361

Thor S, Suspended, full dome, wide street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 24L50-740 WSC BPS HFX CL2 FD MSU34GM385562LED8.2096630374
TR 24L70-740 WSC BPS HFX CL2 FD MSU34GM527430LED8.2096630375

Thor S, Catenary mounting, full dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 24L105-740 NR-S BPS CL2 FD MCA7910183LED8.6096630287
TR 24L70-730 NR-S BPS CL2 FD MCA526942LED8.6096665342
TR 24L70-740 NR-S BPS CL2 FD MCA527592LED8.6096665343

Thor S, Catenary mounting, full dome, wide street optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 24L105-730 WS-S BPS CL2 FD MCA799222LED8.6096665350
TR 24L105-740 WS-S BPS CL2 FD MCA7910114LED8.6096665351

Thor L, Post top mounting, full dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 NR BP CL2 FD W9 T60E738860LED13.9096643935
TR 48L50-740 NR BP CLO CL2 FD W9 T60E7310561LED13.9096643932
TR 72L50-730 NR BP CL2 FD W9 T60E10914398LED14.8096643945
TR 72L50-740 NR BP CL2 FD W9 T60E10915597LED14.8096643942

Thor L, Post top mounting, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 FD W9 T60E739870LED13.9096643937
TR 48L50-740 RWT BP CL2 FD W9 T60E7310692LED13.9096643934
TR 72L50-730 RWT BP CL2 FD W9 T60E10914576LED14.8096643947
TR 72L50-740 RWT BP CL2 FD W9 T60E10915791LED14.8096643944

Thor L, Post top mounting, full dome, street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 SC BP CL2 FD W9 T60E739826LED13.9096643936
TR 48L50-740 SC BP CL2 FD W9 T60E7310644LED13.9096643933
TR 72L50-730 SC BP CL2 FD W9 T60E10914511LED14.8096643946
TR 72L50-740 SC BP CL2 FD W9 T60E10915720LED14.8096643943

Thor L, Post top mounting, opal dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 NR BP CL2 OP W9 T60E798860LED14.2096643895
TR 48L50-740 NR BP CL2 OP W9 T60E7910561LED14.2096643892
TR 72L50-730 NR BP CL2 OP W9 T60E11514398LED14.6096643905
TR 72L50-740 NR BP CL2 OP W9 T60E11515597LED14.6096643902

Thor L, Post top mounting, opal dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 OP W9 T60E799870LED14.2096643897
TR 48L50-740 RWT BP CL2 OP W9 T60E7910692LED14.2096643894
TR 72L50-730 RWT BP CL2 OP W9 T60E11514576LED14.6096643907
TR 72L50-740 RWT BP CL2 OP W9 T60E11515229LED14.6096643904

Thor L, Post top mounting, opal dome, street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 SC BP CL2 OP W9 T60E799826LED14.2096643896
TR 48L50-740 SC BP CL2 OP W9 T60E7910644LED14.2096643893
TR 72L50-730 SC BP CL2 OP W9 T60E11514511LED14.6096643906
TR 72L50-740 SC BP CL2 OP W9 T60E11515720LED14.6096643903

Thor L, Lateral mounting, full dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 NR BP CL2 FD W9 L60E738860LED13.9096643955
TR 48L50-740 NR BP CL2 FD W9 L60E7310561LED13.9096643952
TR 72L50-730 NR BP CL2 FD W9 L60E10914398LED14.8096643965
TR 72L50-740 NR BP CL2 FD W9 L60E10915597LED14.8096643962

Thor L, Lateral mounting, full dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 FD W9 L60E739870LED13.9096643957
TR 48L50-740 RWT BP CL2 FD W9 L60E7310692LED13.9096643954
TR 72L50-730 RWT BP CL2 FD W9 L60E11514576LED14.8096643967
TR 72L50-740 RWT BP CL2 FD W9 L60E10915791LED14.8096643964

Thor L, Lateral mounting, full dome, street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 SC BP CL2 FD W9 L60E739826LED13.9096643956
TR 48L50-740 SC BP CL2 FD W9 L60E7310644LED13.9096643953
TR 72L50-730 SC BP CL2 FD W9 L60E10914511LED14.8096643966
TR 72L50-740 SC BP CL2 FD W9 L60E10915720LED14.8096643963

Thor L, Lateral mounting, opal dome, narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 NR BP CL2 OP W9 L60E798860LED14.2096643915
TR 48L50-740 NR BP CL2 OP W9 L60E7910561LED14.2096643912
TR 72L50-730 NR BP CL2 OP W9 L60E11514398LED14.6096643925
TR 72L50-740 NR BP CL2 OP W9 L60E11515597LED14.6096643922

Thor L, Lateral mounting, opal dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 RWT BP CL2 OP W9 L60E799870LED14.2096643917
TR 48L50-740 RWT BP CL2 OP W9 L60E7910692LED14.2096643914
TR 72L50-730 RWT BP CL2 OP W9 L60E11514576LED14.6096643927
TR 72L50-740 RWT BP CL2 OP W9 L60E11515229LED14.6096643924

Thor L, Lateral mounting, opal dome, street comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 48L50-730 SC BP CL2 OP W9 L60E799826LED14.2096643916
TR 48L50-740 SC BP CL2 OP W9 L60E7910644LED14.2096643913
TR 72L50-730 SC BP CL2 OP W9 L60E11514511LED14.6096643926
TR 72L50-740 SC BP CL2 OP W9 L60E11515720LED14.6096643923

Thor L, Catenary mounting, full dome, road comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 72L50 730 RC CL2 FD MCA IO W1210914560LED15.0096631735
TR 72L50 740 RC CL2 FD MCA IO W1210915773LED15.0096631733
TR 72L50-730 RC CL2 FD MCA 12M10914560LED15.0096630232
TR 72L50-740 RC CL2 FD MCA 12M10915773LED15.0096630230

Thor L, Catenary mounting, opal dome, wet road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
TR 72L50 730 RWT CL2 OP MCA IO W1211514576LED15.0096631736
TR 72L50-730 RWT CL2 OP MCA 12M11514576LED15.0096630233
TR 72L50-740 RWT CL2 OP MCA 12M11515229LED15.0096630231
TR 72L50-740 RWT CL2 OP MCA IO W1211515229LED15.0096631734

Thor S

Thor accessories

Description   Wt (kg)SAP Code
TR MCA FIXING1.9496631145
