Victoria

  • Victoria
  • Victoria

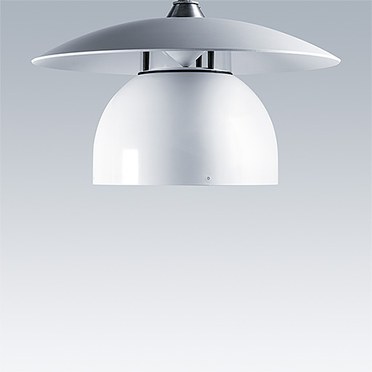

Street and urban lantern combining advanced performance with aesthetics through the use of an illuminated canopy

  • IP65 seal ensures long life of components and through life performance
  • Efficient lamp packages and dimming options for immediate energy savings
  • Features for fast maintenance and installation, plus 'twist and lock' hinge for easy access to components
  • Choice of fixings for post-top or side entry mounting

Materials and Finish

Body: aluminium powder coated NCS0500 (White)
Canopy: ABS white
Spigot: corrosion protected steel
Enclosure: 4mm clear toughened glass
Screws and clips: stainless steel
(EN AC-44300).
Standard corrosion class C5 according to ISO 9223: 2012.

Installation and Mounting

Mounting spigot of female 3/4" pipe thread type (for Ø27G male threaded tube). Large choice of fixings for post-top or side entry (see Columns section of the catalogue). Cable gland for Ø6mm to Ø13mm cable. Access from below to gear and optic system after quick release of the hinged glass enclosure via 'twist and lock' design. Automatic disconnection of the electrical mains when opening. Mounting plate with optics and ballast has hinge suspension and stays attached when released. Tool free connection to 2x2.5mm² terminal. Complete with wired 8m (W8) or 10m (W10) cable.

New Product
LumExpress Product
eControl Product

▼ Victoria, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
VICIA1 12L105-740 NR BP 3550 HFX CL2 ->485182LED5.6696276882
VICIA1 12L105-740 NR CL2 N8M R9006485182LED5.4196681006
VICIA1 12L35-740 NR BP 3550 HFX CL2 ->211980LED5.6696276879
VICIA1 12L35-740 NR CL2 N8M R9006211980LED5.3596681003
VICIA1 12L50-740 NR BP 3550 HFX CL2 ->272732LED5.6696276880
VICIA1 12L50-740 NR CL2 N8M R9006272732LED5.4196681004
VICIA1 12L70-740 NR BP 3550 HFX CL2 ->343681LED5.6696276881
VICIA1 12L70-740 NR CL2 N8M R9006343681LED5.4196681005
VICIA1 24L105-740 NR BP 3550 HFX CL2 ->8610099LED5.6696276886
VICIA1 24L105-740 NR CL2 N8M R90068610099LED5.5396681010
VICIA1 24L35-740 NR BP 3550 HFX CL2 ->343943LED5.6696276883
VICIA1 24L35-740 NR CL2 N8M R9006343943LED5.4496681007
VICIA1 24L50-740 NR BP 3550 HFX CL2 ->445425LED5.6696276884
VICIA1 24L50-740 NR CL2 N8M R9006445425LED5.4496681008
VICIA1 24L70-740 NR BP 3550 HFX CL2 ->597264LED5.6696276885
VICIA1 24L70-740 NR CL2 N8M R9006597264LED5.4696681009
VICIA1 36L35-740 NR BP 3550 HFX CL2 ->455883LED5.6696276887
VICIA1 36L35-740 NR CL2 N8M R9006455883LED5.4996681011
VICIA1 36L50-740 NR BP 3550 HFX CL2 ->618063LED5.6696276888
VICIA1 36L50-740 NR CL2 N8M R9006618063LED5.4996681012
VICIA1 36L70-740 NR BP 3550 HFX CL2 ->8310735LED5.6696276889
VICIA1 36L70-740 NR CL2 N8M R90068310735LED5.7796681013
VICIA2 48L35-740 NR BP 3550 HFX CL2 ->577851LED14.1096276890
VICIA2 48L35-740 NR CL2 N8M R9006577851LED9.0796681014
VICIA2 48L50-740 NR BP 3550 HFX CL2 ->7810772LED14.1096276891
VICIA2 48L50-740 NR CL2 N8M R90067810772LED9.0796681015
VICIA2 48L70-740 NR BP 3550 HFX CL2 ->10914350LED14.1096276892
VICIA2 48L70-740 NR CL2 N8M R900610914350LED9.3096681016
VICIA2 60L35-740 NR BP 3550 HFX CL2 ->699797LED14.1096276893
VICIA2 60L35-740 NR CL2 N8M R9006699797LED9.3396681017
VICIA2 60L50-740 NR BP 3550 HFX CL2 ->9613410LED14.1096276894
VICIA2 60L50-740 NR CL2 N8M R90069613410LED9.3396681018
VICIA2 60L70-740 NR BP 3550 HFX CL2 ->13417823LED14.1096276895
VICIA2 60L70-740 NR CL2 N8M R900613417823LED9.3396681019
VICIA2 72L35-740 NR BP 3550 HFX CL2 ->8111737LED14.1096276896
VICIA2 72L35-740 NR CL2 N8M R90068111737LED9.3696681020
VICIA2 72L50-740 NR BP 3550 HFX CL2 ->11416041LED14.1096276897
VICIA2 72L50-740 NR CL2 N8M R900611416041LED9.3696681021
VICIA2 72L70-740 NR BP 3550 HFX CL2 ->15921240LED14.1096276898
VICIA2 72L70-740 NR CL2 N8M R900615921240LED9.6096681022

▼ Victoria Canopies

Description   Catalogue No.Wt (kg)SAP Code
VICIA1 CANOPY (R9006)E79302241.6096187043
VICIA2 CANOPY (R9006)T69014022.3096187297

▼ Victoria Accessories

Description   Wt (kg)SAP Code
POLE BRACKET TYPE 100 L=4202.4096185585
POLE BRACKET TYPE 72B L=8003.8096185584
VICTOR 7403B SEMI HOOK2.3096006748
VICTOR BRACKET FOR ARM 48MM0.8096186717
VICTOR BRACKET FOR ARM 60MM1.3096187212
VICTOR HOOK R2303.9096006749
VICTOR HOOK R2954.6096187415
VICTOR SEMI HOOK 7401B R2302.3096006741
VICTOR WIRE SUSPENSION WITH ADAPTOR2.2096006751
WALL BRACKET FOR HOOK OR SEMI HOOK GRY1.6096006750
