Isaro Pro

  • Isaro Pro

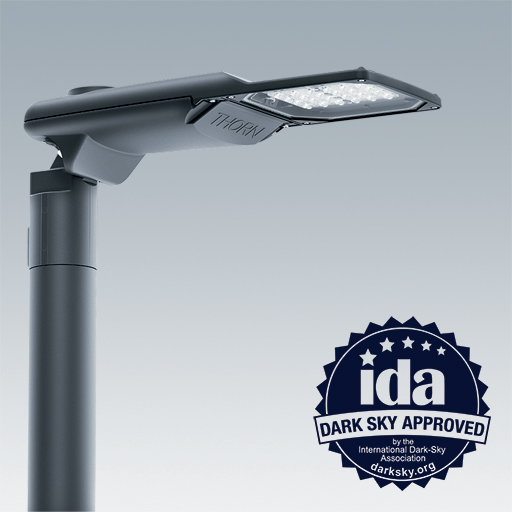

This robust and high-performance LED street lantern brings comfort and safety to any road or street

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
  • Future proofing: upgrading of the Optic and Control Gear can be performed on site if required; CMS options can be incorporated /upgraded in the course of life with the 7 pin NEMA socket option; removable optic and gear assembly allows easy interchange
  • Easy clean design including flat glass optical cover and optimally sized smooth heat dissipation cover
  • Range of optics, tilt capability, tuneable flux and programmable driver facilitate optimisation of lighting design and minimisation of power consumption
  • Tool-less top opening and incorporation of Automatic Disconnect for easy, safe access and simple electrical testing or maintenance operations
  • OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, mounting, colour...). See myProduct for configuration options

Materials and Finish

Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating.
Housing, canopies, spigot: die-cast aluminium EN AC-44300.
Version GY-S: Housing, canopies : light grey 150 sanded textured (close to RAL9006); spigot : non painted
Version ANT: Housing, canopies, spigot: texturized anthracite grey (close to RAL7043), Other RAL colours on request.
Glass: 5 mm thick
Fixings: stainless steel

Installation and Mounting

Suitable for mounting on top Ø76mm or Ø60mm (by ordering the correct version or adapter).
Suitable for mounting on side Ø60mm or Ø42mm (by ordering the correct version or adapter).
Variable tilting setting: 0° to +20° on post top mounting and -15° to +15° on lateral mounting, in 5° steps.
Cable gland for Ø8 to 12mm cable. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

New Product
LumExpress Product
eControl Product

Isaro Pro Small, Narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   Catalogue No.TypeWt (kg)SAP Code
IP 12L105-740 NR BS 3550 CL2 M60 ANT415369E7734311LED5.5096276037
IP 12L35-740 NR BS 3550 CL2 M60 ANT152070E7734300LED5.5096275832
IP 12L50-740 NR BS 3550 CL2 M60 ANT202851E7734310LED5.5096276036
IP 12L50-740 NR BS 3550 CL2 WS8 T60F GY202851E7727762LED6.2092904520
IP 12L70-740 NR BS 3550 CL2 M60 ANT273833E7734302LED5.5096275842
IP 12L70-740 NR BS 3550 CL2 WS8 T60F GY273833E7727763LED6.2092901943
IP 24L105-740 NR BS 3550 CL2 M60 ANT8010632E7734312LED5.7096276038
IP 24L35-740 NR BS 3550 CL2 M60 ANT284132E7734304LED5.7096275858
IP 24L35-740 NR BS 3550 CL2 WS8 T60F GY284132E7727764LED6.4092904539
IP 24L50-740 NR BP 3550 ZU CL2 WS8 ->385690LED5.6092930850
IP 24L50-740 NR BS 3550 CL2 M60 ANT385690E7734308LED5.7096275903
IP 24L50-740 NR BS 3550 CL2 WS8 T60F GY385690E7727765LED6.4092904540
IP 24L70-740 NR BP 3550 ZU CL2 WS10 ->537630LED5.6092930851
IP 24L70-740 NR BS 3550 CL2 M60 ANT537630E7734306LED5.7096275868
IP 24L70-740 NR BS 3550 CL2 WS10 T60F GY537630E7727766LED6.5092904522
IP 36L35-740 NR BS 3550 CL2 M60 ANT396180LED5.9096276039
IP 36L50-740 NR BS 3550 CL2 M60 ANT558484LED5.9096276040
IP 36L70-740 NR BS 3550 CL2 M60 ANT7711337LED5.9096276041
IP 36L70-740 NR BS 3550 CL2 WS10 T60F GY7711337E7727467LED6.7092905986
IP 36L85-740 NR BS 3550 CL2 M60 ANT9413305LED5.9096276042

Isaro Pro Small, Extra narrow road optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
IP 12L70-740 ENR BP 3550 ZU CL2 WS8 ->283828LED5.6092930849

Isaro Pro Small, Extra wide road optic

Isaro Pro Small, Road comfort optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
IP 36L35-740 RC BPL CL2 M76 ANT396250LED6.5092911027
IP 36L50-740 RC BPL CL2 M76 ANT558580LED6.5092911028
IP 36L70-740 RC BPL CL2 M76 ANT7711466LED6.5592911026

Isaro Pro Small, Wide road optic

Isaro Pro Medium, Narrow road optic

Isaro Pro Medium, Wide street optic

Isaro Pro Medium, Wide street comfort optic

Isaro Pro Medium, Wet road optic

Isaro Pro Medium, Road comfort optic

Isaro Pro Medium, Wide road optic

Isaro Pro Medium, Extra wide street optic

Isaro Pro Medium, Pedestrian crossing optic

Isaro Pro Medium, Street comfort optic

Isaro Pro Medium, Extra wide street comfort optic

Isaro Pro Medium, Extra wide road optic

Isaro Pro Medium, Extra narrow road optic

Isaro Pro Medium, Extensive street optic

Isaro Pro Medium, Staggered road optic

Isaro Pro accessories
