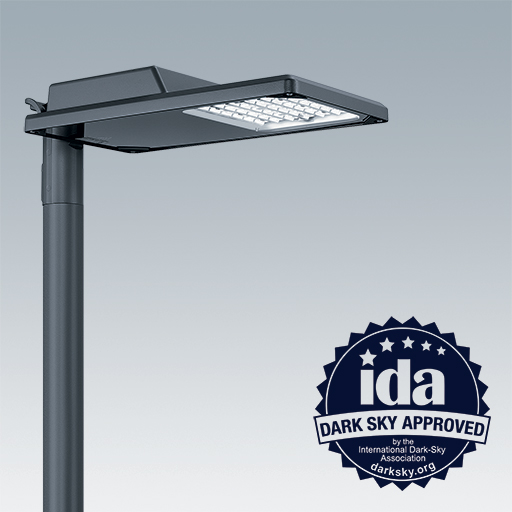

Isaro
Discrete and flexible road and street lighting lantern with durable high performance
- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures, +/- 10° maximum tilt only. Luminaires must be mounted as photometered.
- Designed to maximize lighting performances, optimize circular economy strategies, while limiting its carbon footprint.
- Reliable and flexible : high quality die-cast aluminium EN AC 44300 casting and Geomet anti-galvanic treated screws combined with vast range of lighting distributions, control, protection, wiring and color options
- Highest corrosion protection according to EN ISO 9223 : Class 5
- Light weight, pre-wired to the needs for easy installation
Materials and Finish
Housing, spigot: die-cast aluminium EN AC 44300, screws treated with Geomet anti-galvanic coating, powder coated texturized light grey (GY), Spigot painted. Via the configurator: Texturized black (BK), Texturized anthracite (ANT) and 48 other RAL possibilities. Standard corrosion class C5 according to ISO 9223: 2012.
Glass: Toughened glass, 4 or 5 mm thickness
Fixings: stainless steel, with anti-galvanic treatment
Installation and Mounting
Installation up to 15 m height
• Versatile tilting technology, lateral (-15°/+15°) and post top (0°/+20°)
• Adjustable inclination by increments of 5° to optimize lighting distribution and uniformity
• Universal spigot for lateral and post top installation
• As a standard: possible coastal application thanks to its C5 corrosion protection class (ISO 9223:2012)
• Pre-wired for ease of installation at any pole height. Option with IP67 quick connector if pole cable is retained (refurbishment)
▼ Isaro Extra Small, Narrow road optic
| Description | Luminaire power (W) | Luminaire output (lm) | Catalogue No. | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IS 12L105-730 NR CL2 WS7 T60F GY | 41 | 4736 | LED | 3.76 | 96634354 | |||||
| IS 12L25-730 NR CL2 WS7 T60F GY | 11 | 1342 | LED | 3.71 | 96634349 | |||||
| IS 12L35 730 NR CL2 WS6 T60F GY-S | 14 | 1821 | E7728397 | LED | 3.38 | 92938814 | ||||
| IS 12L35 740 NR CL2 WS6 T60F GY-S | 14 | 1991 | E7728385 | LED | 3.38 | 92938802 | ||||
| IS 12L35-730 NR CL2 WS7 T60F GY | 14 | 1821 | LED | 3.71 | 96634350 | |||||
| IS 12L50 730 NR CL2 WS8 T60F GY-S | 20 | 2510 | E7728398 | LED | 3.63 | 92938815 | ||||
| IS 12L50 740 NR CL2 WS8 T60F GY-S | 20 | 2745 | E7728696 | LED | 3.63 | 92957275 | ||||
| IS 12L50-730 NR CL2 WS7 T60F GY | 20 | 2510 | LED | 3.76 | 96634351 | |||||
| IS 12L70 730 NR CL2 WS8 T60F GY-S | 27 | 3375 | E7728399 | LED | 3.63 | 92938816 | ||||
| IS 12L70 740 NR CL2 WS8 T60F GY-S | 27 | 3692 | E7728384 | LED | 3.63 | 92938364 | ||||
| IS 12L70-730 NR CL2 WS7 T60F GY | 27 | 3375 | LED | 3.76 | 96634352 | |||||
| IS 12L85-730 NR CL2 WS7 T60F GY | 33 | 3983 | LED | 3.76 | 96634353 |
▼ Isaro Small, Narrow road optic
▼ Isaro with Zhaga socket, 3000K
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| IS 12L50-730 NR2 M CLO BP3550 ZU CL2 -> | 20 | 2575 | LED | 3.83 | 92945455 | ||||
| IS 12L70 730 ENR M CLO ZU CL2 WS3 -> | 27 | 3606 | LED | 3.24 | 92945461 | ||||
| IS 12L70-730 ENR M CLO BP3550 ZU CL2 -> | 27 | 3606 | LED | 3.83 | 92945456 | ||||
| IS 24L50-730 NR M CLO BP3550 ZU CL2 -> | 37 | 5404 | LED | 4.54 | 92945457 | ||||
| IS 24L70-730 NR M CLO BP3550 ZU CL2 -> | 52 | 7251 | LED | 4.54 | 92945458 | ||||
| IS 36L105-730 MR M CLO BP3550 ZU CL2 -> | 117 | 15084 | LED | 5.30 | 92945460 | ||||
| IS 36L70-730 NR M CLO BP3550 ZU CL2 -> | 76 | 10823 | LED | 5.08 | 92945459 |
