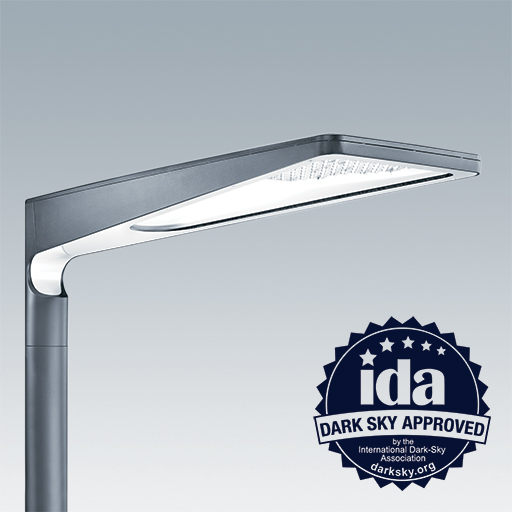

For sophistication and comfort in urban life

  • Exclusively designed for Thorn by world renowned architects, city planners and designers Wilmotte & Industries
  • Unique signature at day and night thanks to an optical system designed with special care for comfort (G6)
  • Outstanding versatility: 9 optics, lumen packages up to 15 000 lm, 2 sizes, 3 mounting options to fulfill a wide scope of projects (new and renovation) from S5 to Me2
  • Latest generation LED technology with integrated controls to minimise energy and maintenance costs

Materials and Finish

Luminaire:
Body: die cast aluminium - two options: dark grey (close to RAL 7043) or black (close to RAL 9005) textured finish
Glass: tempered flat glass or dichroic flat glass (5mm). Prismatic glass on request
Frame: aluminium - powder polycarbonate, metallised aluminium and varnish
Deflector: ABS anti-UV white (RAL 9016)

Brackets with coordinated columns:
Painted galvanised steel, dark grey or black textured finish.
Two diameter conical columns dedicated to Urba post top lantern:
Painted aluminium, dark grey or black textured finish

Installation and Mounting

Luminaire: Supplied complete and ready to install, in a single box. Pre-wired post-top versions with 8m (small version) or 10m (large version) H07RN-F cable. The following options are available: side-entry mounting Ø60mm with adjustable tilt angles: 0°, -5°, -10°, post-top mounting Ø60mm or Ø76mm, spigot length 100mm. Weight: 12kg (small versions) and 17kg (large version)

Brackets with coordinated columns: Dedicated range of columns and brackets. Recommended heights for Urba small: 4 to 6m, for Urba large: 6 to 8m. Columns delivered with anchoring bolts. Aluminium columns (diameters: internal 76mm, external 96mm - internal 60mm and external 81mm) with flange mountings: 200x200mm. Galvanised steel columns with flange mountings: 300x300mm

New Product
LumExpress Product
eControl Product

Urba S RWET

Urba S NR

Urba S WR

Urba S WSC

Urba S IVS

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 36L70 IVS ANT CL2 8M MTP60 740778540LED10.5096269606

Urba S SC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 24L35 SC ANT BP CL2 8M MTP60 L740283367LED10.5096269671
URBA S 24L35 SC ANT BP CL2 MLE L740283367LED10.5096269509
URBA S 24L35 SC BK BP CL2 MLE L740282994LED10.5096271173
URBA S 24L50 SC ANT BP CL2 8M MTP60 L740384602LED10.5096269674
URBA S 24L50 SC ANT BP CL2 MLE L740384602LED10.5096269512
URBA S 24L50 SC BK BP CL2 MLE L740384092LED10.5096271174
URBA S 24L70 SC ANT BP CL2 8M MTP60 L740536117LED10.5096269677
URBA S 24L70 SC ANT BP CL2 MLE L740536117LED10.5096269515
URBA S 24L70 SC ANT CL2 MLE L740536117LED10.5096269751
URBA S 24L70 SC ANT CLO CL2 MLE L740536117LED10.5096269752
URBA S 36L35 SC ANT BP CL2 8M MTP60 L740395032LED10.5096269672
URBA S 36L35 SC ANT BP CL2 8M MTP76 740395032LED10.5096270863
URBA S 36L35 SC ANT BP CL2 MLE L740395032LED10.5096269510
URBA S 36L35 SC BK BP CL2 8M MTP76 740394475LED10.5096270861
URBA S 36L35 SC BK BP CL2 MLE L740394475LED10.5096270073
URBA S 36L50 SC ANT BP CL2 8M MTP60 L740556859LED10.5096269675
URBA S 36L50 SC ANT BP CL2 MLE L740556859LED10.5096269513
URBA S 36L70 SC ANT BP CL2 8M MTP60 L740779077LED10.5096269678
URBA S 36L70 SC ANT BP CL2 MLE L740779077LED10.5096269516

Urba S EPR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA S 36L35 EPR ANT CL2 8M MTP60 L740394403LED10.5096271168
URBA S 36L35 EPR BK CL2 8M MTP76 L740394403LED10.5096271169

Urba L RC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 RC ANT BP CL2 10M MTP60 L74516544LED16.0096269949
URBA L 48L35 RC ANT BP CL2 MLE L740516544LED16.0096269875
URBA L 48L50 RC ANT BP CL2 10M MTP60 L74728928LED16.0096269952
URBA L 48L50 RC ANT BP CL2 MLE L740728928LED16.0096269878
URBA L 48L70 RC ANT BP CL2 10M MTP60 L7410311832LED16.0096269955
URBA L 48L70 RC ANT BP CL2 MLE L74010311832LED16.0096269881
URBA L 60L70 RC ANT BP CL2 10M MTP60 L7412814671LED16.0096270047
URBA L 60L70 RC ANT BP CL2 MLE L74012814671LED16.0096270042
URBA L 72L35 RC ANT BP CL2 10M MTP60 L74759773LED16.0096269950
URBA L 72L35 RC ANT BP CL2 MLE L740759773LED16.0096269876
URBA L 72L50 RC ANT BP CL2 10M MTP60 L7410913290LED16.0096269953
URBA L 72L50 RC ANT BP CL2 MLE L74010913290LED16.0096269879
URBA L 72L70V2 RC ANT BP C2 10MMTP6 74015317518LED16.0096269956
URBA L 72L70V2 RC ANT BP CL2 MLE L74015317518LED16.0096269882
URBA L 84L35 RC ANT BP CL2 10M MTP60 L748811382LED16.0096269951
URBA L 84L35 RC ANT BP CL2 MLE L7408811382LED16.0096269877
URBA L 84L50 RC ANT BP CL2 10M MTP60 L7412715459LED16.0096269954
URBA L 84L50 RC ANT BP CL2 MLE L74012715459LED16.0096269880
URBA L 84L70 RC ANT BP CL2 10M MTP60 L7417820331LED16.0096269957
URBA L 84L70 RC ANT BP CL2 MLE L74017820331LED16.0096269883

Urba L RWET

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 RWET ANT BP CL2 10MMTP60 74516666LED16.0096269940
URBA L 48L35 RWET ANT BP CL2 MLE L740516666LED16.0096269866
URBA L 48L50 RWET ANT BP CL2 10MMTP60 74729094LED16.0096269943
URBA L 48L50 RWET ANT BP CL2 MLE L740729094LED16.0096269869
URBA L 48L70 RWET ANT BP CL2 10MMTP60 7410312052LED16.0096269946
URBA L 48L70 RWET ANT BP CL2 MLE L74010312052LED16.0096269872
URBA L 60L70 RWET ANT BP CL2 10MMTP60 7412814944LED16.0096270046
URBA L 60L70 RWET ANT BP CL2 MLE L74012814944LED16.0096270041
URBA L 72L35 RWET ANT BP CL2 10MMTP60 74759954LED16.0096269941
URBA L 72L35 RWET ANT BP CL2 MLE L740759954LED16.0096269867
URBA L 72L50 RWET ANT BP CL2 10MMTP60 7410913538LED16.0096269944
URBA L 72L50 RWET ANT BP CL2 MLE L74010913538LED16.0096269870
URBA L 72L70V2 RWET ANT BP C2 10MMTP6 7415317844LED16.0096269947
URBA L 72L70V2 RWET ANT BP CL2 MLE L74015317844LED16.0096269873
URBA L 84L35 RWET ANT BP CL2 10MMTP60 748811594LED16.0096269942
URBA L 84L35 RWET ANT BP CL2 MLE L7408811594LED16.0096269868
URBA L 84L50 RWET ANT BP CL2 10MMTP60 7412715747LED16.0096269945
URBA L 84L50 RWET ANT BP CL2 MLE L74012715747LED16.0096269871
URBA L 84L70 RWET ANT BP CL2 10MMTP60 7417820709LED16.0096269948
URBA L 84L70 RWET ANT BP CL2 MLE L74017820709LED16.0096269874

Urba L NR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L35 NR ANT BP CL2 10M MTP60 L74516409LED16.0096269931
URBA L 48L35 NR ANT BP CL2 MLE L740516409LED16.0096269856
URBA L 48L50 NR ANT BP CL2 10M MTP60 L74728744LED16.0096269934
URBA L 48L50 NR ANT BP CL2 MLE L740728744LED16.0096269859
URBA L 48L70 NR ANT BP CL2 10M MTP60 L7410311588LED16.0096269937
URBA L 48L70 NR ANT BP CL2 MLE L74010311588LED16.0096269862
URBA L 60L70 NR ANT BP CL2 10M MTP60 L7412814368LED16.0096270045
URBA L 60L70 NR ANT BP CL2 MLE L74012814368LED16.0096270040
URBA L 60L70 NR ANT CL2 MLE L74012814368LED16.0096270048
URBA L 60L70 NR ANT CLO CL2 MLE L74012814368LED16.0096270049
URBA L 72L35 NR ANT BP CL2 10M MTP60 L74759571LED16.0096269932
URBA L 72L35 NR ANT BP CL2 MLE L740759571LED16.0096269857
URBA L 72L50 NR ANT BP CL2 10M MTP60 L7410913016LED16.0096269935
URBA L 72L50 NR ANT BP CL2 MLE L74010913016LED16.0096269860
URBA L 72L50 NR ANT CL2 PL MLE L74010913016LED16.0096270038
URBA L 72L70V2 NR ANT BP C2 10MMTP6 74015317157LED16.0096269938
URBA L 72L70V2 NR ANT BP CL2 MLE L74015317157LED16.0096269863
URBA L 72L70V2 NR ANT CL2 MLE L74015317157LED16.0096269985
URBA L 72L70V2 NR ANT CLO CL2 MLE L74015317157LED16.0096269986
URBA L 84L35 NR ANT BP CL2 10M MTP60 L748810130LED16.0096269933
URBA L 84L35 NR ANT BP CL2 MLE L7408810130LED16.0096269858
URBA L 84L50 NR ANT BP CL2 10M MTP60 L7412715141LED16.0096269936
URBA L 84L50 NR ANT BP CL2 MLE L74012715141LED16.0096269861
URBA L 84L70 NR ANT BP CL2 10M MTP60 L7417819912LED16.0096269939
URBA L 84L70 NR ANT BP CL2 MLE L74017819912LED16.0096269864

Urba L WR

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 72L50 WR ANT BP CL2 MLE L74010913212LED16.0096269865

Urba L IVS

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 48L70 IVS ANT CL2 10M MTP60 74010311425LED16.0096269928

Urba L SC

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
URBA L 72L50 SC ANT BP CL2 MLE L74010913641LED16.0096269884
URBA L 84L35 SC BK BP CL2 10M MTP76 L7408810389LED16.0096270082
